![](/Uploads/image/product/20160606/JIK3820D-AS-3.jpg)

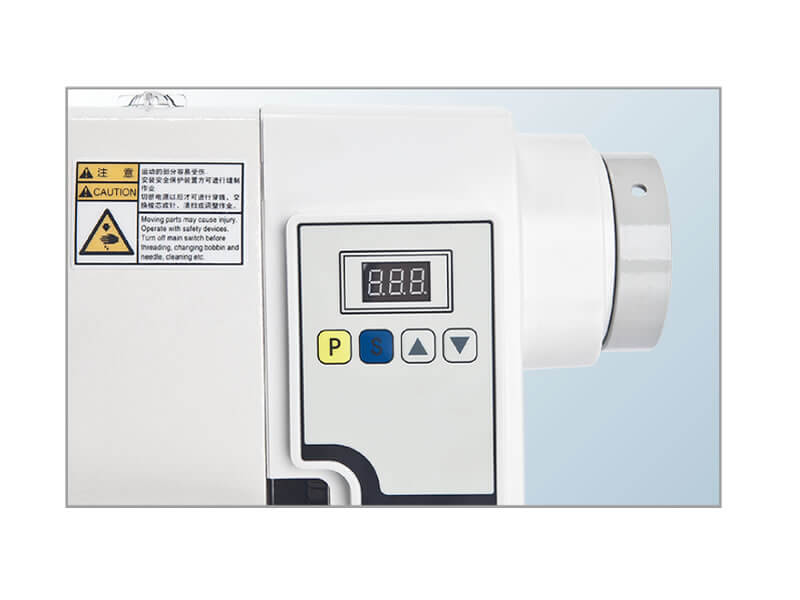

The use of plug-in quick installation mode, safe and reliable, touch control panel, easy to operate, can achieve automatic up and down needle function.
![](/Uploads/image/product/20160606/JIK3820D-AS-4.jpg)

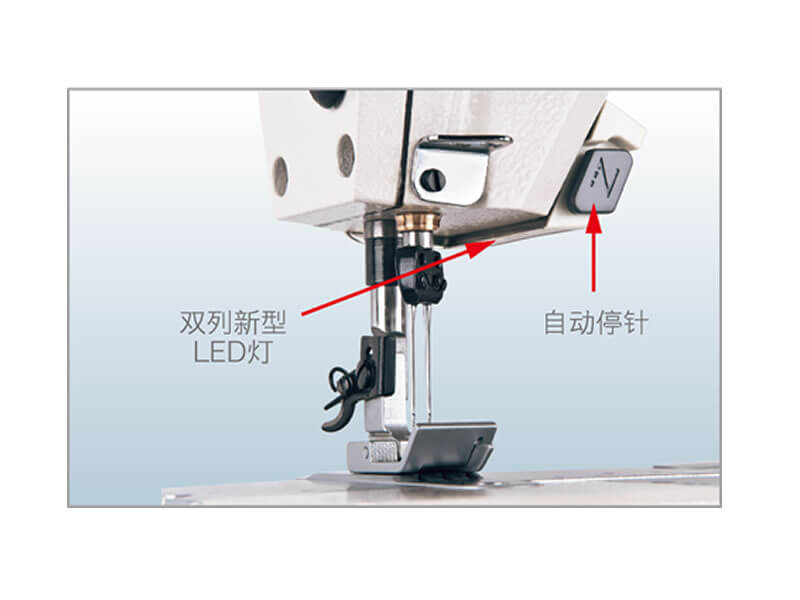

The machine head is equipped with a double switch, fast automatic stop function. Equipped with double row new LED lamp, the same color line, material sewing more clearly visible.
![](/Uploads/image/product/20160606/JIK3820D-AS-5.jpg)

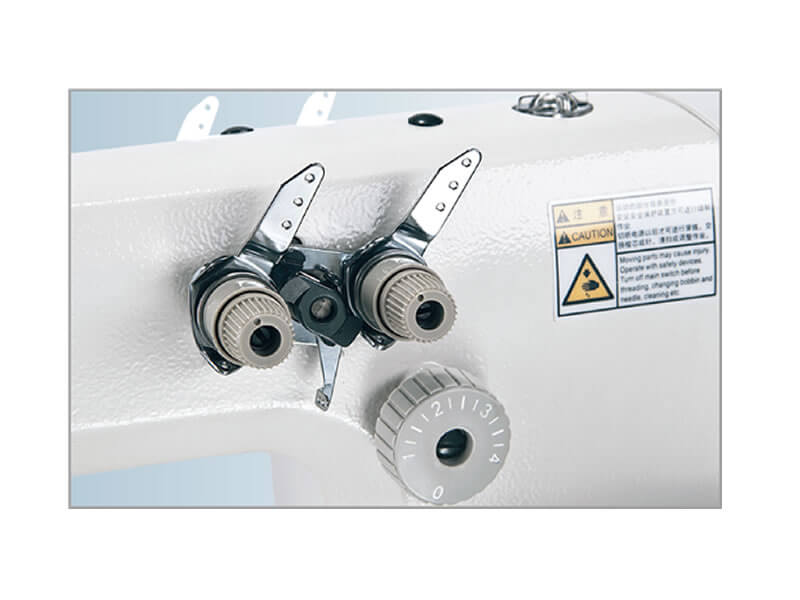

The connecting rod type feeding mechanism, the needle rod and the thread hook line are used to form a double chain stitch, and the stitch is firm and elastic.
Product model |
JIK3810D-AS | JIK3820D-AS | JIK3830D-AS |
Needle size |
9-21# | 9-21# | 9-21# |
The number of needle |
1 | 2 | 3 |
Line number |
2 | 4 | 6 |
stitch length(mm) | 4 | 4 | 4 |
Foot height(mm) | 5.5-10 | 5.5-10 | 5.5-10 |
Maximum speed (rpm) | 4500 | 4500 | 4500 |
Thin material |
● | ● | ● |
In the material |
● | ● | ● |
Thick material |
● | ● | |
Package size(mm) | 665×250×485 | 665×250×485 | 665×250×485 |
Weight(kg) | 25.5/34 | 25.5/34 | 25.5/34 |
