Straight cylindrical straight drive automatic trimming ultra-high speed flat seaming machine


Straight cylindrical straight drive automatic trimming ultra-high speed flat seaming machine

Market Reference Price:¥ 88000.00

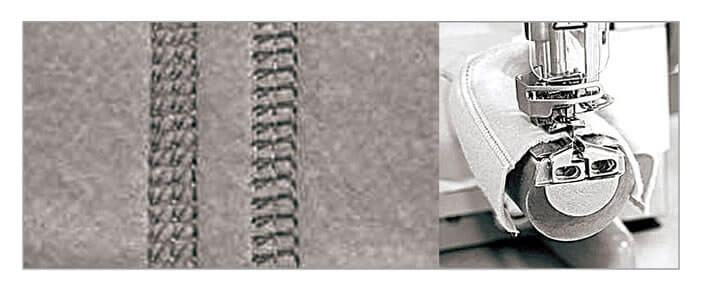

There are decorative lines, sewing stitch beautiful

This machine is suitable for special processes in all kinds of garment processing, such as sportswear line, double needle collar and cuffs, all kinds of layering, elastic band, more suitable for all kinds of textile, knitwear, sportswear, swimwear, casual clothes, all kinds of rhythm belts, jackets, all kinds of package is stretched and ornament seams of small caliber tubular products ideal for processing.
With the decorative line, sewing stitch beautiful. The utility model has the advantages of beautiful appearance, reasonable structure, and two sets of synchronous belt transmission.
The machine only need to change the needle plate, needle width will be able to achieve a multi-purpose machine. This machine is equipped with finger protector, goggles and other security devices, the use of safety.
The lubricating system is fully enclosed and automatic oil supply, only needs to be filled once, the oil is convenient, the lubrication is full, the sealing performance is good, and the utility model is clean and environment-friendly.
The utility model has the advantages of convenient operation, convenient use, and easy change of the stitch in the 1.2mm-4mm range, and the utility model has the advantages that the utility model can make the differential ratio in the range of 1:0.8 to 1:2 stepless adjustment.
All parts of the machine are made of high quality steel, which is specially hardened to improve the wear resistance, low vibration, low noise and long service life.

Product model JIK1500-140-BD JIK1500-148-BD JIK1500-156-BD JIK1500-164-BD
The number of needle 3 3 3 3
The number of lines 5 5 5 5
Stitch amplitude(mm) 1.2-4 1.2-4 1.2-4 1.2-4
stitch length(mm) 4.0 4.8 5.6 6.4
Foot height(mm) 9 9 9 9
Differential Ratio 0.8-1.2 0.8-1.2 0.8-1.2 0.8-1.2
Maximum speed(rpm) 4000 4000 4000 4000
Direct motor
Automatic thread cutting
Automatic presser foot
Package size(mm) 600×390×630 600×390×630 600×390×630 600×390×630
Weight (kg) 50/55 50/55 50/55 50/55

※Model configuration instructions:“●” On behalf of the standard configuration“○”On behalf of the optional configuration
